i-eas1

RFID based loss prevention with item-level tracking
Fewer false alarms with beam switching antennas
and direction detection technology

Plug and
Play

RFID Hight Reading
Performance

Small and Compact
Design

Mini
Screen

Introduction

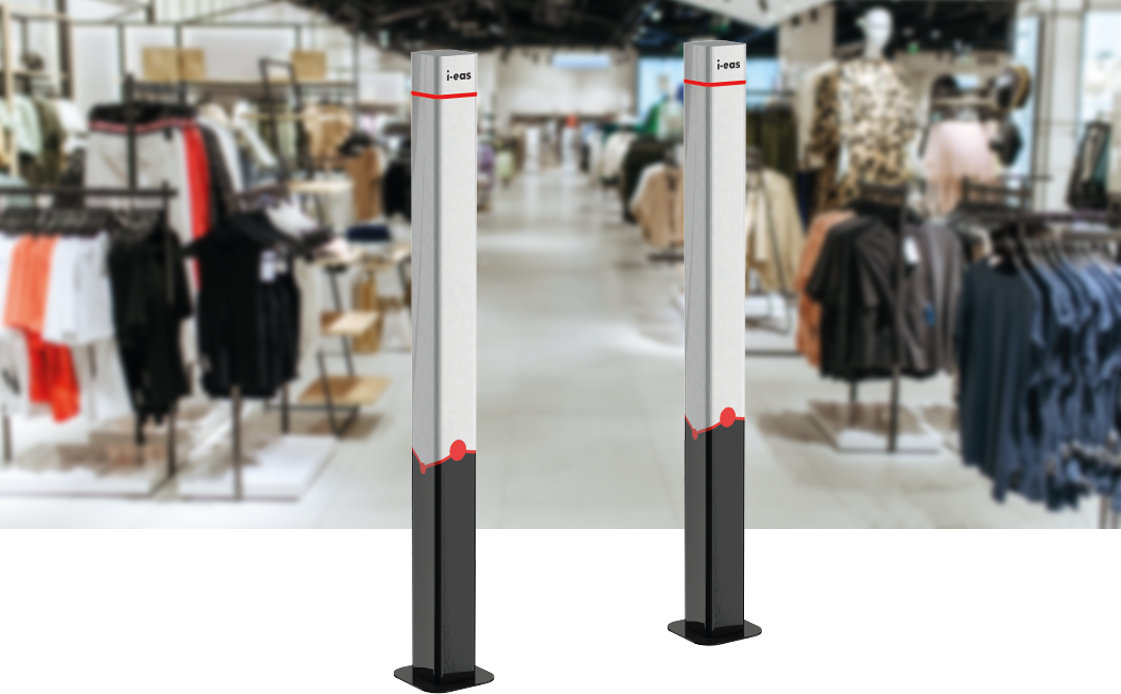

The i-eas1 is an integrated RFID “Electronic Article Surveillance” system that works with passive UHF RFID tags, fitted at source, or UHF RFID hard tags.

Beam switching antennas detect the direction of moving items and alarm sounds only if the item is moving out and item level tracking enables identifying and reporting of products passing out of the exit.

Brand new high-performance sleek RFID antennas perfectly fit in a retail store environment.

Further Details

  • Protocol EPC Class1 Gen2/ISO 18000-6C
    Frequency Range 860 - 960 MHz
    Max TX Power 30 dBm
    RX Sensitivity typ. -80
    Antennas Beam switchin antennas
    Read Rate 200 tags / second
    Communication Ethernet
    Power Input 12 V DC
    Power Consumption 24 W max
    Output Sound and led light
    Dimensions body 160x14x14 cm / pedestal: 24x24 cm
    Maximum spacing 4 m
    Operating Temperature -20°C to 60°C
  • Frequency Band UHF 860-960 MHz
    International Standards ISO/IEC 18000-6C
    EPC Global Class 1 Gen 2
    Industry Retail
    Aplication Fashion
    Eyewear
    Shoe stores
    Jewelry
    Accessories
    Shopping
  • Detection of direction - fewer false alarms
    High performance
    Network integration
    Item level tracking
    Competitive pricing


Download Datasheet
